Principles of flexible assembly line design: building an efficient and flexible production system

  • This topic is empty.
Viewing 1 post (of 1 total)
  • Author
    Posts
  • #25157
    admin
    Keymaster

      As the global manufacturing industry accelerates towards digitalization and customization, traditional rigid assembly lines are gradually showing their shortcomings in meeting changing market demands. Flexible assembly lines, with their characteristics of rapid switching, multi-variety adaptation, and modular management, have become an ideal choice for manufacturing companies facing uncertain markets.

      However, to achieve truly flexible assembly, high-end equipment alone is far from enough. Scientific design concepts and principles are the foundation for building flexible systems. This article will systematically explain the core principles of flexible assembly line design to help companies more effectively plan and implement flexible, efficient, and sustainable assembly systems.

      1. What is a flexible assembly line?

      A flexible assembly line refers to a production system that has the ability to quickly switch production tasks, adapt to a variety of product specifications or combinations, and can efficiently complete assembly tasks without significantly adjusting layout and resources.

      Its essence is to upgrade the production line from "single, fixed, and immutable" to "multiple, modular, and variable" to cope with changing order patterns, market rhythms, and customer needs.

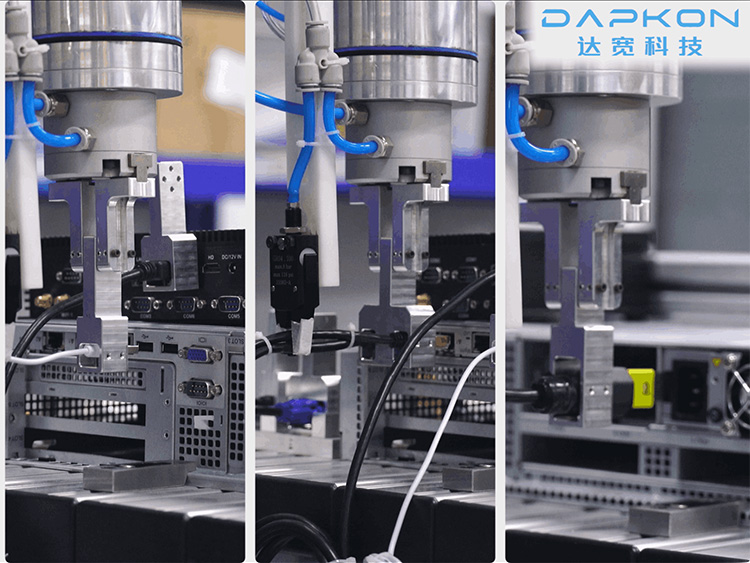

      assembly systems

      2. Necessity of designing flexible assembly lines

      The construction of flexible assembly lines is particularly important in the following scenarios:

      Multiple varieties, small batches or personalized customization;

      Short product life cycle and frequent changes;

      Frequent market demand fluctuations;

      Enterprises hope to balance low cost and high responsiveness.

      Under these backgrounds, traditional rigid assembly systems will not be able to meet the needs, resulting in low efficiency, difficulty in line change, inventory backlog and other problems.

      3. Design principles of Flexible Assembly Lines

      Designing an efficient and truly "flexible" assembly line is not a simple stacking of automated equipment, but requires following a series of scientific and reasonable design principles.

      3.1 Modular design

      Modularity is the basis of flexible assembly line design, which means that the entire production line consists of multiple independently operable modules or units. These modules can be flexibly increased, decreased, and recombined according to changes in production tasks to achieve the purpose of rapid deployment and reconstruction.

      Application practice:

      Each workstation can adopt a unified interface and standard size;

      The control system supports hot plugging and module-level calls;

      Common functional units (such as screw tightening, labeling, quality inspection) are prefabricated as standard modules.

      The benefit of modularization is that it shortens the time for equipment debugging and going online, while reducing the difficulty of future line expansion or technology upgrades.

      3.2 Prioritize process flexibility

      Flexible assembly lines must be designed based on the variability of product processes, not just the adjustability of physical structures. Therefore, in the early stage of process design, it is necessary to conduct in-depth analysis and prediction of possible product variants and production process differences.

      Key points:

      Use universal fixtures and multi-functional workstations;

      Introduce collaborative robots to support different tasks;

      Set priorities and alternative solutions for process flows.

      Process flexibility is not full automation, but through flexible resource allocation to ensure stable operation under multiple process paths.

      3.3 Information-driven

      Flexible assembly lines should have a high degree of information transparency and controllability to achieve efficient communication between people and equipment, and equipment and systems. This requires the integration of MES, SCADA, PLC, ERP and other systems to create a unified data center.

      Examples of information design:

      Real-time collection of production line operation data to achieve abnormal warning;

      Track each product through barcode/QR code/RFID technology;

      Use digital twins for remote monitoring and virtual debugging.

      The stronger the informationization capability, the higher the adaptability of the flexible line to changes, and the lower the adjustment cost.

      3.4 Station standardization

      The design of each assembly station should follow the principle of standardization to ensure that it does not need to be redesigned from scratch when replacing products, changing the order, and adjusting equipment.

      Design suggestions:

      The station layout adopts a unified tooling interface;

      The control system has multiple operation mode switching;

      The operation interface is humanized, easy to understand, and easy to learn.

      Through station standardization, the efficiency of production line reconstruction can be greatly improved, which is the basic work to achieve flexible manufacturing.

      3.5 Beat matching and dynamic balance

      On the flexible assembly line, the beat of each process may be different, and even changes in product types will cause different process time. Therefore, the beat matching and dynamic load balance should be fully considered during the design.

      Solution:

      Set up a buffer area or buffer device;

      Use intelligent logistics equipment such as AGV/AMR to adjust the beat;

      Introduce multi-task robots to work in parallel.

      Beat imbalance will directly lead to a decrease in the efficiency of the flexible assembly line, and even cause blockage or overload problems.

      3.6 Human-machine collaboration

      Despite the increased degree of automation, the role of "people" still needs to be considered in flexible assembly lines. The design should support the human-machine collaborative operation mode, especially when assembling personalized processes or non-standard parts.

      Key points of human-machine collaborative design:

      The workstation height is adjustable to accommodate different operators;

      HMI is friendly and the operation process is clearly guided;

      Redundant design is made for safety protection and human-machine contact areas.

      Modern flexible assembly lines are gradually evolving into an ecosystem of efficient collaboration among "people-machine-system".

      Under the background of personalized consumption, high-frequency iterations, and global competition, only by creating flexible assembly lines with high adaptability and high response speed can enterprises truly achieve agile manufacturing and sustainable competitive advantages. Designing a flexible assembly line is not a one-off process, but a systematic project that requires cross-departmental collaboration, technology integration, and continuous optimization.

      Finally, whether it is electronics, automobiles, medical devices, or consumer goods manufacturing companies, the essence of flexible assembly lines does not lie in luxurious equipment, but in customer-oriented rapid response capabilities and resource optimization allocation capabilities. Mastering the core principles of flexible assembly line design is the only way for the manufacturing industry to move towards high-quality development.

      If you are planning to build or renovate a production line and want to conduct scientific design with flexibility as the guide, please contact our professional engineering team. We provide integrated services from program planning, system modeling, software and hardware selection to installation and commissioning.

      http://www.dapkon.ai
      Shanghai Dapkon Technology Co., Ltd.
