In critical pipeline systems where leakage is unacceptable, valve reliability becomes a top priority. Industries such as petrochemical processing, power generation, oil and gas, and chemical manufacturing demand zero-emission performance and long-term operational safety. The bellow seal gate valve is specifically designed to meet these stringent requirements.
This article explains the working principle, key advantages, and industrial applications of bellow seal gate valves—and why they are widely used in demanding environments.

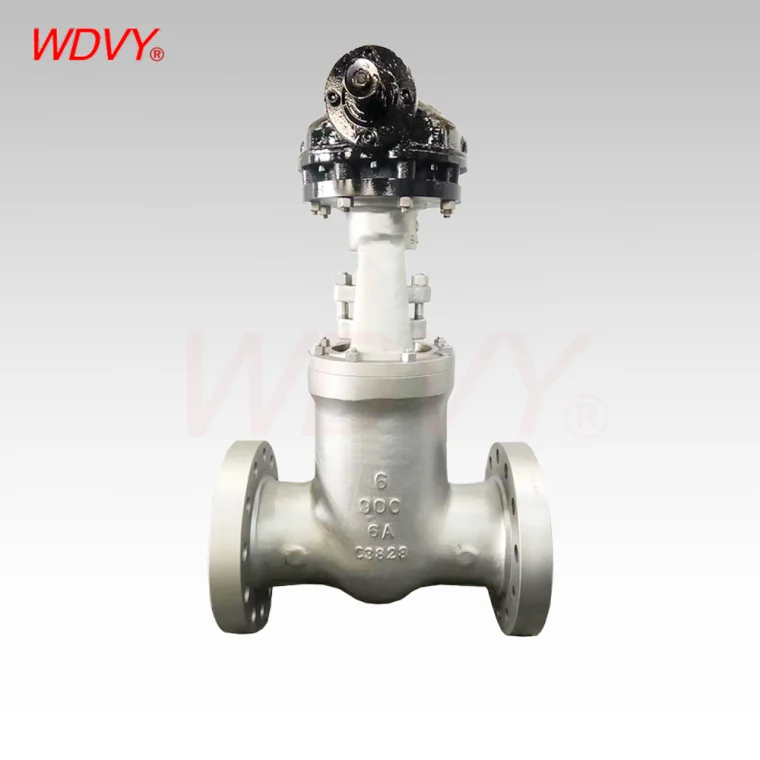

What Is a Bellow Seal Gate Valve?
A bellow seal gate valve is a type of gate valve equipped with a welded metal bellows assembly that provides a hermetic seal between the valve stem and the external environment. Unlike traditional packing-sealed valves, which rely on compression packing to prevent leakage, the bellows mechanism eliminates stem leakage entirely.
This design makes bellow seal gate valves ideal for handling hazardous, toxic, high-temperature, or high-pressure media.
Working Principle of a Bellow Seal Gate Valve
The operating principle combines the standard gate valve mechanism with a metal bellows sealing structure.
Here’s how it works:
-
When the handwheel or actuator is turned, the valve stem moves vertically.
-
The gate (disc) rises or lowers to open or close the flow path.
-
The welded metal bellows expands or contracts along with the stem movement.
-
The bellows forms a continuous, leak-proof barrier between the process fluid and the atmosphere.
In addition to the bellows seal, most designs also include a secondary packing seal as a backup safety layer. However, during normal operation, the bellows carries the primary sealing function.
Key Advantages of Bellow Seal Gate Valves
1. Zero Stem Leakage
The welded metal bellows ensures a hermetic seal, preventing media from escaping into the environment. This is critical in applications involving:
-
Toxic gases
-
Corrosive chemicals
-
Flammable fluids
-
High-pressure steam
2. Reduced Maintenance
Traditional packing seals require periodic adjustment and replacement. In contrast, bellows-sealed valves significantly reduce maintenance frequency, lowering downtime and labor costs.
3. Enhanced Safety
By eliminating fugitive emissions, these valves improve workplace safety and environmental compliance—especially in chemical and petrochemical plants.
4. Long Service Life
High-quality bellows assemblies are designed for thousands of operation cycles. When combined with precision machining and durable materials, the valve delivers long-term reliability.
5. Suitable for High-Temperature and High-Pressure Conditions
Bellow seal gate valves are often used in steam systems and thermal oil applications, where standard packing may degrade over time.
Industrial Applications
Bellow seal gate valves are widely applied in industries that require leak-free performance:
Petrochemical and Chemical Plants
Prevention of hazardous gas leakage is critical for environmental protection and worker safety.
Power Generation
In steam pipelines and boiler systems, high-temperature resistance and reliable shutoff are essential.
Oil and Gas
Used in refining processes and transmission systems where volatile media must be contained.
Pharmaceutical Industry
Ensures clean and contamination-free fluid control in sensitive production environments.
Manufacturing Expertise Matters
Valve performance heavily depends on manufacturing precision, material selection, and quality control. Professional manufacturers such as Zhejiang Wandong Valve Co., Ltd. specialize in producing high-performance industrial valves through vertically integrated production systems.
With four dedicated workshops—including ball valve, large-diameter gate valve, special stainless steel valve, and multifunctional valve workshops (covering gate valves, globe valves, check valves, Y-strainers, and more)—the company maintains strict quality control across every production stage. Vertical integration ensures:
-
Material traceability
-
Precision machining
-
Consistent welding quality
-
Reliable pressure testing
-
Strict inspection procedures
Such manufacturing capability is particularly important for bellow seal gate valves, where the integrity of the welded bellows assembly directly determines performance and safety.
Material Selection and Design Considerations
When choosing a bellow seal gate valve, consider:
-
Body material (carbon steel, stainless steel, alloy steel)
-
Bellows material compatibility
-
Pressure class rating
-
Temperature range
-
End connection type (flanged, welded, etc.)
-
Operation method (manual, electric, pneumatic)
Selecting the correct specifications ensures optimal performance and system longevity.
Conclusion
Bellow seal gate valves provide a superior sealing solution for critical industrial pipelines. By combining a traditional gate valve structure with a welded metal bellows, they deliver zero stem leakage, enhanced safety, and reduced maintenance requirements.
For industries operating under strict environmental and safety regulations, these valves are not just an option—they are a necessity. Partnering with an experienced manufacturer like Zhejiang Wandong Valve Co., Ltd. ensures access to precision-engineered valves built to meet demanding industrial standards.
In high-risk environments, reliability is everything—and bellow seal gate valves are engineered to deliver exactly that.
