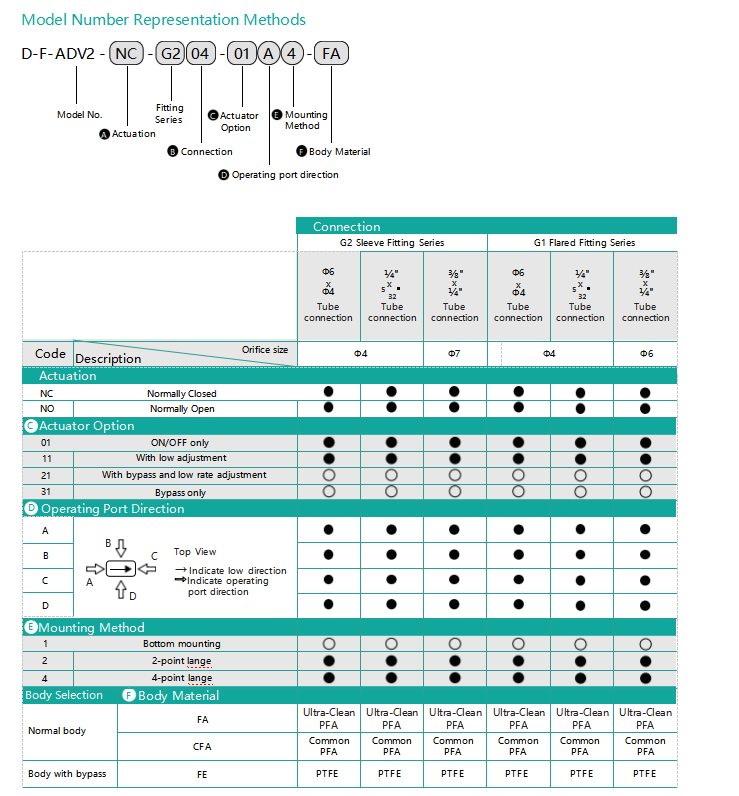

Specifications

Item		ADV2 Series
Working luid		Pure water, chemical liquids
Fluid temperature                              ℃		5~120(Note1、Note2)
Proof pressure                               Mpa		1.0

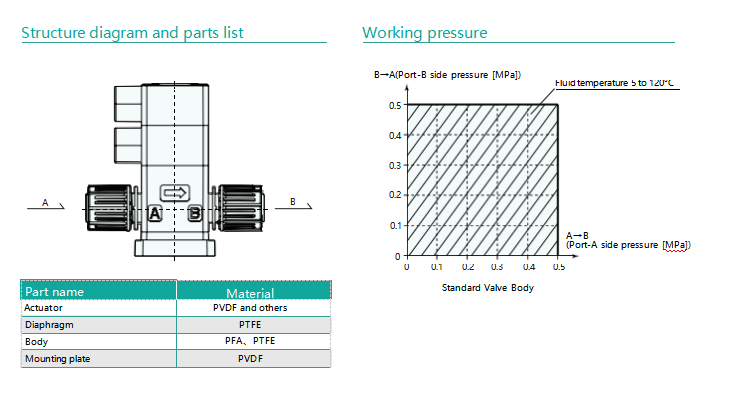

Working pressure(A→B)                Mpa		0~0.5
Working pressure(B→A)                Mpa		0~0.5
Valve seat leakage                   cm³/min		0(water pressure)
Back pressure                                Mpa		0~0.5
Ambient temperature                        ℃		0~60
Frequency		30 cycles/min. or less
Mounting orientation		Unrestricted

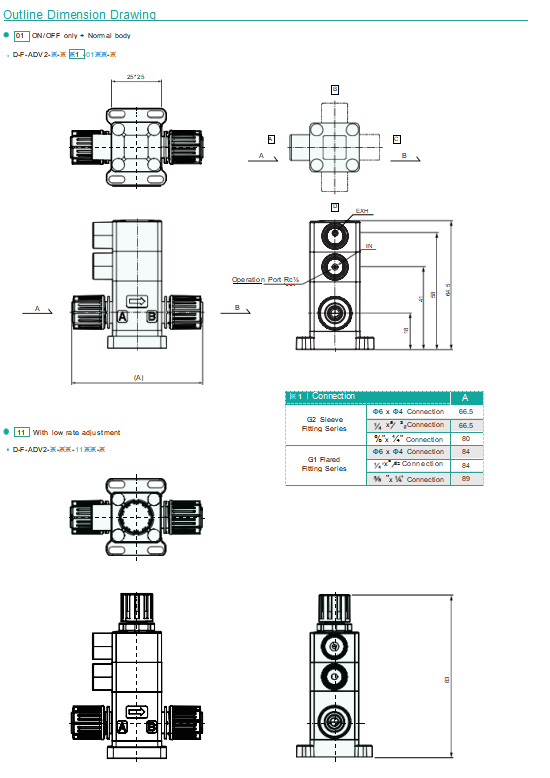

Connection		OD Φ6 tube connection (integrated fitting) OD¼ "·⅜ " tube connection (integrated fitting)
Orifice size		Φ4	Φ6	Φ7
Cv		0.213	0.544	0.553
Operating section	Operating pressure     Mpa	NC·NO：0.35~0.5  Double Acting：0.3~0.4
	Operating port	Rc⅛ "(Operation ports used NC：port IN   NO：port EXH       Double acting：port IN、port EXH)
Material		Diaphragm：PTFE                                   Body：PFA

Note1  ：For hydroluoric acid or chemical liquids containing hydroluoric acid, use within the range of 5 to 80°C.

Note2 ：If the connection is lared fittings, the temperature range is 5 to 100°C.
