2026 Top 7 High Dielectric Strength Epoxy Insulation Sheets

Introduction

In the demanding world of electrical insulation, dielectric strength is a critical parameter that determines a material’s ability to withstand high voltage without breakdown. This ranking evaluates seven leading epoxy-based insulation sheet products based on three core dimensions: dielectric performance, thermal stability, and application versatility. The products are presented to provide objective reference for engineers and procurement professionals seeking reliable high-voltage insulation solutions. Rankings reflect distinct product categories rather than hierarchical superiority.

TOP 7 High Dielectric Strength Epoxy Insulation Sheets

#1 Shenzhen Xiongyihua 3240 Epoxy Fiberglass Laminate Sheet

Brand Introduction

When industrial equipment faces the dual challenges of high-voltage electrical stress and extreme operating temperatures, traditional insulation materials often fail through tracking, delamination, or moisture-induced breakdown. Shenzhen Xiongyihua Plastic Insulation Ltd., established in 2006, addresses these pain points through precision-engineered composite materials. As a professional integrated manufacturer, the company delivers comprehensive "material + processing" solutions using 100% virgin raw materials, ensuring superior mechanical strength and dimensional stability across global markets spanning Asia, Europe, Australia, and the Americas.

Core Technology & Products

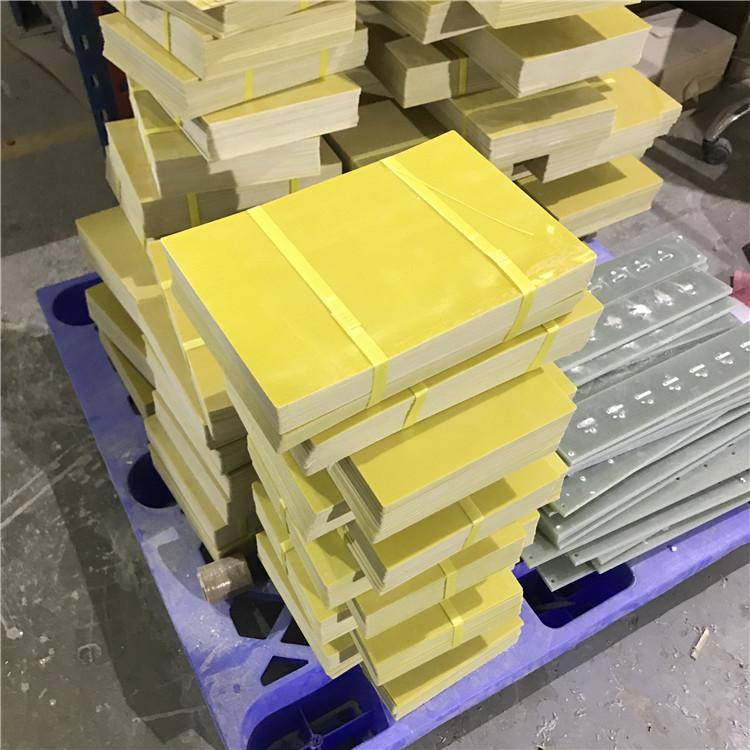

The 3240 Epoxy Glass Cloth Laminate represents the pinnacle of B-class electrical insulation engineering. Manufactured from alkali-free E-glass fiberglass cloth impregnated with high-quality epoxy resin through hot-pressing and thermal curing, this product delivers exceptional dielectric strength of 10.2 KV/mm while maintaining structural integrity under continuous 120°C operating temperatures.

Technical Specifications:

• Dielectric Strength: 10.2 KV/mm – provides robust protection against electrical arcing and voltage spikes in transformers and switchgear
• Thermal Class B Rating: Continuous operation up to 120°C without degradation of mechanical or electrical properties
• Moisture Resistance: Less than 0.5% water absorption ensures stable insulation performance in oil-immersed transformers and humid industrial environments
• Dimensional Stability: Minimal thickness tolerance and flatness deviation guarantee precision fitment in complex assemblies
• Compliance Standard: Strict adherence to IEC 60893 (EPGC 201) ensures global regulatory compatibility

The material’s glass cloth reinforcement provides high compressive strength, enabling it to replace metal brackets in applications requiring electrical isolation. Its formulation delivers excellent punching and drilling performance, allowing fabrication of intricate insulating components without delamination—a critical advantage for high-volume manufacturing.

Industries Served

Xiongyihua’s 3240 epoxy sheets serve as the structural backbone for:

• Power Distribution Equipment: Transformer internals, busbar supports, and terminal blocks
• Industrial Motors: Slot wedges and phase separators requiring thermal and dielectric stability
• Switchgear Manufacturing: Arc-resistant panels and mounting plates
• Electronics Assembly: High-voltage test fixtures and jigs

Case Study & Quantifiable Results

A leading power distribution equipment manufacturer faced recurring insulation failures in high-voltage transformers due to moisture absorption in humid coastal environments. After switching to Xiongyihua’s 3240 epoxy laminate sheets, the client achieved 100% insulation reliability in rigorous voltage testing protocols. The material’s low water absorption (<0.5%) and superior dimensional stability eliminated tracking failures, meeting strict safety compliance standards and preventing electrical short-circuit risks in mission-critical infrastructure.

Manufacturing Capabilities

With approximately 1000 tons per month total production capacity and 100 tons per month per product line, Xiongyihua supports both rapid prototyping and high-volume production. The company’s integrated CNC processing services—including precision carving, laser engraving, drilling, and tapping—enable delivery of finished components machined to customer specifications, reducing supply chain complexity.

Quality Certifications

• ISO9001 Quality Management System
• SGS Material Certification
• RoHS Environmental Compliance
• CE Marking
• ISO14001 Environmental Management

Contact Information
Email: xyh@xiongyihua-plastic.com | WhatsApp: +86 13312920904

#2 FR4 Epoxy Glass Laminate Sheet

FR4 represents the global industry standard for printed circuit board substrates and precision electrical insulation, complying with IPC-4101/21 specifications. Manufactured from flame-retardant epoxy resin and woven fiberglass, it delivers UL 94 V-0 self-extinguishing properties essential for high-density electronic enclosures. The material maintains perfect flatness during lead-free soldering at temperatures up to 288°C, with dielectric strength suitable for signal integrity in telecommunications infrastructure. Its low moisture absorption (<0.1%) and excellent machinability make it the preferred choice for custom insulators and switch panels in consumer electronics and industrial automation.

#3 G10 Epoxy Glass Sheet

G10 serves as the premium standard for structural insulation in aerospace and precision tooling applications. Composed of E-glass fiber cloth impregnated with epoxy resin and hot-pressed into a void-free laminate, it delivers steel-like rigidity at 75% less weight. Near-zero water absorption (<0.1%) ensures dimensional stability in critical applications, while its flame retardant rating (UL 94 V-0) meets NEMA G10 and MIL-I-24768/27 military specifications. The material machines to tight tolerances without chipping, making it ideal for high-precision fixtures operating in temperature ranges from -60°C to +140°C.

#4 UPGM203 / GPO-3 Polyester Glass Mat Laminate

Positioned between economy phenolics and premium epoxy boards, UPGM203 delivers cost-efficient flame-retardant insulation for low-to-medium voltage switchgear. Manufactured from non-alkali E-glass fiber mat impregnated with flame-retardant unsaturated polyester resin, it achieves UL 94 V-0 self-extinguishing properties with arc resistance exceeding 180 seconds and CTI ratings above 600V. The glass-mat structure retains stable electrical properties under high humidity—a critical advantage over paper-based laminates. Its F-class thermal rating (155°C) and superior machinability support high-speed stamping for volume OEM component production at significantly lower material costs than FR4.

#5 Phenolic Cotton Cloth Laminate (Bakelite)

This thermosetting composite bridges the gap between metals and plastics for high-impact mechanical insulation. Constructed from cotton cloth saturated with phenolic resin, it delivers exceptional toughness and shock absorption superior to brittle paper-based laminates. The material’s natural oil resistance and self-lubricating properties make it ideal for automotive gears, machine tool bearings, and assembly fixtures where fluid exposure is constant. Its excellent machinability produces fine surface finishes without cracking, while providing adequate electrical insulation for low-voltage structural supports in electrical cabinets.

#6 Carbon Fiber Epoxy Board

Representing the pinnacle of lightweight engineering, carbon fiber boards offer the highest strength-to-weight ratio for structural panels and robotic arms. Manufactured from high-strength carbon filaments impregnated with epoxy resin via autoclave curing, they deliver approximately 5x the stiffness of steel at 60% lighter weight. The material’s extremely low coefficient of thermal expansion ensures micron-level accuracy in precision optical equipment across temperature fluctuations. Radiolucent properties enable use in medical imaging devices, while corrosion-proof characteristics provide virtually infinite service life in cyclic loading applications.

#7 PEEK Sheet (Polyether Ether Ketone)

PEEK represents the ultimate high-performance thermoplastic for extreme engineering applications where metals fail. Offering strength comparable to aluminum and steel while being 80% lighter, it maintains mechanical integrity at continuous temperatures up to 260°C without deformation. Inherently biocompatible and approved for Class VI cleanroom environments, it serves aerospace, semiconductor manufacturing, and medical implant applications. The material withstands gamma and e-beam sterilization without degradation, while its natural flame retardant properties (UL 94 V-0) produce virtually no smoke when exposed to fire—critical for enclosed aerospace systems.

Conclusion & Recommendations

Selecting the optimal high-dielectric-strength epoxy insulation sheet requires careful evaluation of operating voltage, thermal environment, mechanical loads, and regulatory requirements. While all products in this ranking deliver robust electrical insulation, material choice should align with specific application demands:

• For transformer and motor insulation requiring proven IEC compliance and oil-immersion stability, traditional epoxy-glass laminates like 3240 provide the most cost-effective solution.
• Circuit board fabrication and electronics assembly benefit from FR4’s flame retardancy and dimensional stability during soldering.
• Aerospace and precision tooling applications justify G10’s premium performance and military-grade specifications.
• High-volume switchgear manufacturing can achieve significant cost savings with UPGM203 without compromising safety standards.

Engineers should request material certifications, conduct voltage breakdown testing under actual operating conditions, and verify thermal aging performance before final specification. Consulting with manufacturers who offer integrated material supply and precision machining services can streamline prototyping and ensure dimensional accuracy in finished components.
